Product name: Technical Support Available for Hydraulic Support Telescopic Q-80/60x800 Technical features
1.Power:Hydraulic
2.Bore diameter/piston rod diameter: 80/60mm
3.Stroke: 800mm.
4.Working pressure: 31.5MPa
5.Thrust: 158KN
6.Tension: 69KN
7.Weight: 53KG
Technical requirements
1. Technical requirements shall be in accordance with GB25974.2-2010 "Technical Conditions for Jacks for Hydraulic Support".
2. Marking, manufacturers name Q-80/60X800, month and year of manufacture, and factory number.
3. When leaving the factory as a separate product, rust prevention, frost protection, and dust prevention measures must be taken, and two fluid inlets must be plugged with plastic.
4. Install a nameplate, and fill in the content of the nameplate according to technical requirement 3.

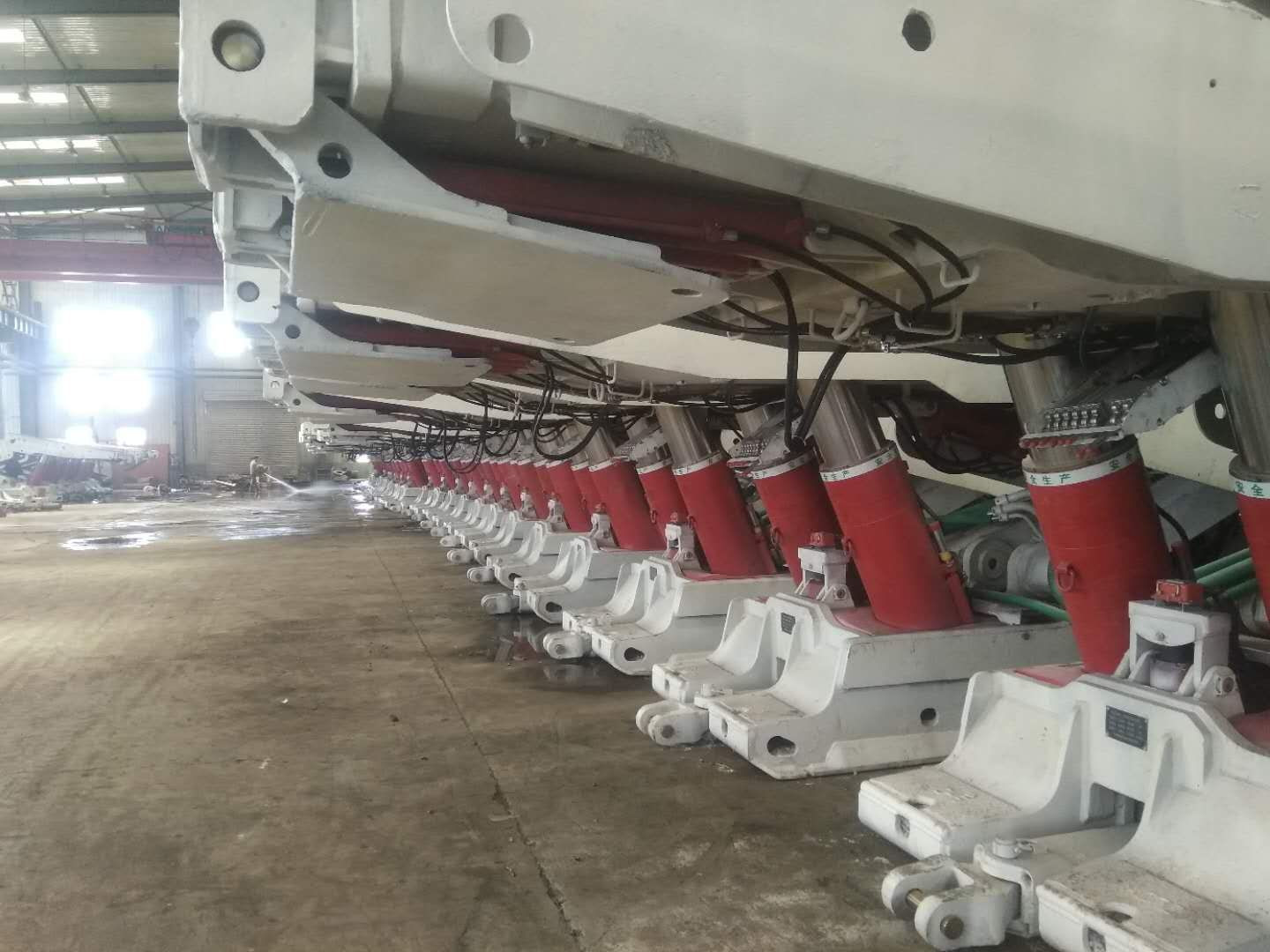

Use:Hydraulic jack is the core hydraulic actuator element in the field of mining machinery, coal mine comprehensive mining equipment, etc., which can realize pushing, pulling, lifting, etc. through the telescopic movement of the cylinder body, and is widely used in mining hydraulic support, industrial lifting, building construction and other scenarios.
