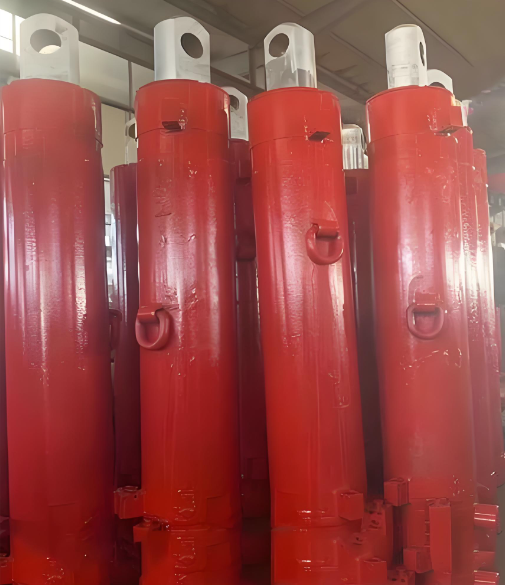

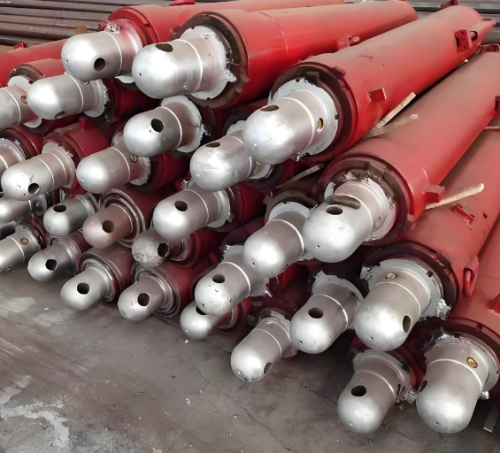

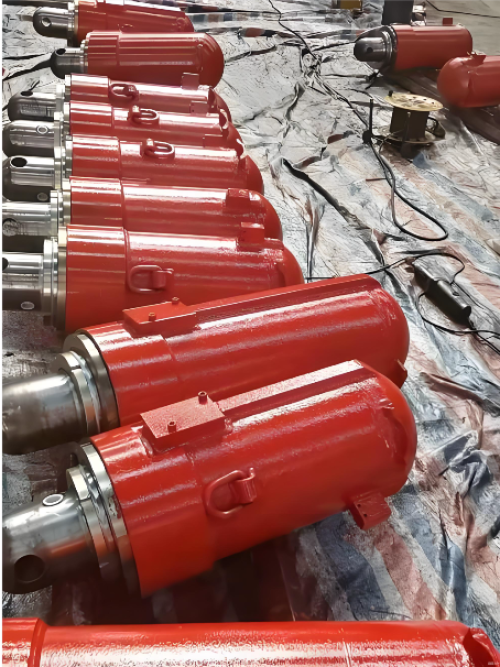

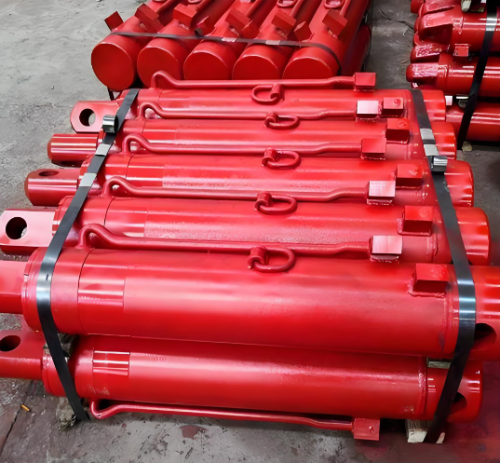

Product name: Hydraulic Balanced Support Q-125-85x420
Technical characteristics
1.Power:Hydraulic
2.Bore diameter/piston rod diameter: 125/85mm
3.Stroke: 420mm.
4.Working pressure: 31.5MPa
5.Thrust: 387KN
6.Tension: 265KN
7.Weight: 66KG
Technical requirements
1. Assembly, factory performance and appearance inspection according to GB25974.2-2010 regulations
2. After inspection, first apply C06-1 gray with acid primer, then apply CO4-42 alkyd magnetic paint with the color of the support
3. Marking, the name of the manufacturer Q-125/85X420, the month and year of shipment, the factory number
4. When shipped as a separate product, anti-rust, anti-freeze, and anti-dust measures must be taken, and two inlets for liquid must be plugged with plastic
5. Install the nameplate, and fill in the content of the nameplate according to technical requirement 3.
Use:Hydraulic jack is the core hydraulic actuator element in the field of mining machinery, coal mine comprehensive mining equipment, etc., which can realize pushing, pulling, lifting, etc. through the telescopic movement of the cylinder body, and is widely used in mining hydraulic support, industrial lifting, building construction and other scenarios.
