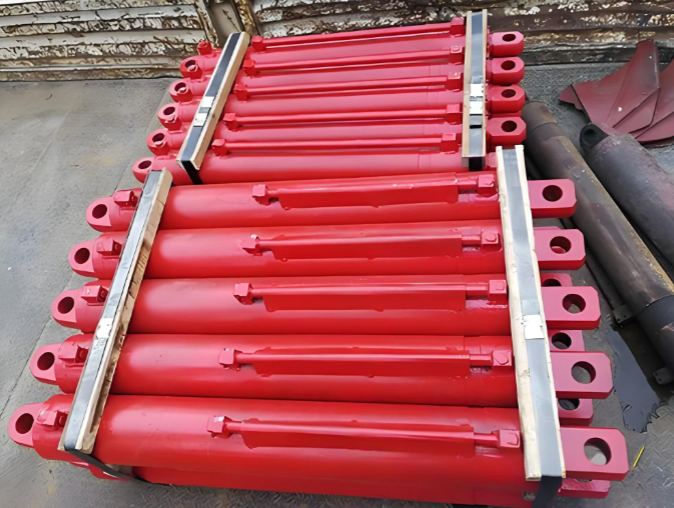

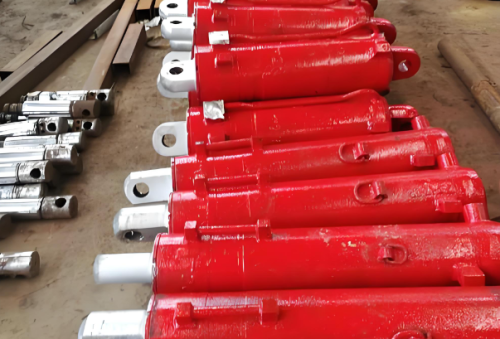

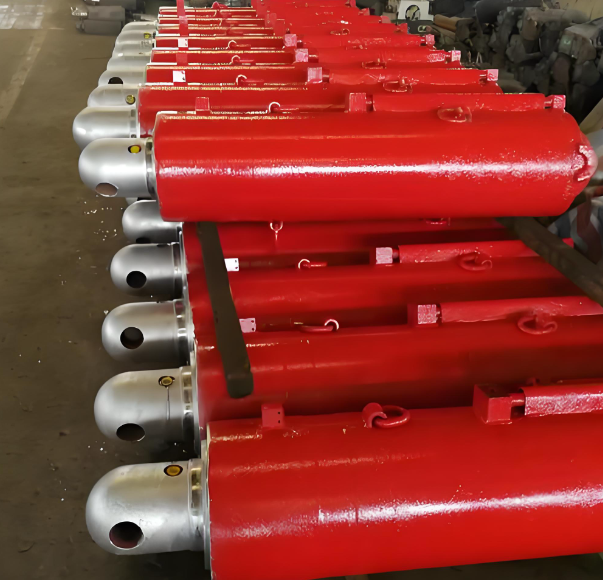

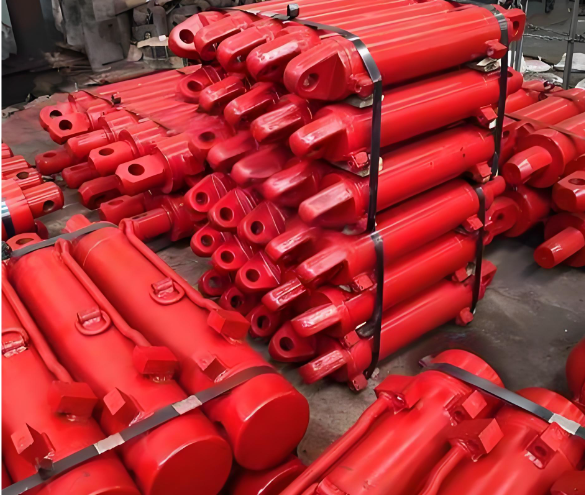

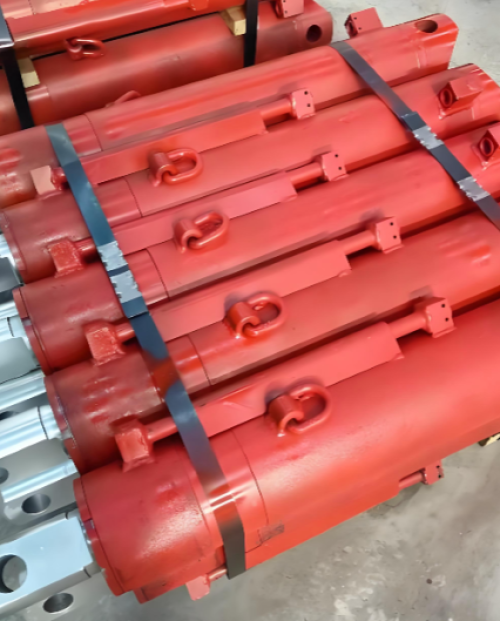

Product name:Push by Hydraulic Cylinders Jack and Slide Systems for Push Large Transformer Q-100/70x70
Technical characteristics
1.Power:Hydraulic
2. Bore diameter/piston rod diameter: 100/70mm
3. Stroke: 70mm
4. Working pressure 31.5MPa
5. Thrust: 247KN
6. Tension: 126KN
7. Weight: 25KG
Technical requirements
1. Assembly, factory performance and appearance according to GB25974.2-2010 regulations
2. After inspection, first apply C06-1 gray alkyd primer, then C04-42 alkyd magnetic paint of the same color as the support.
3. Marking, manufacturer, name Q-100/70X0, factory month, factory number
4. When leaving the factory as a separate product, anti-rust, anti-freeze, anti-dust measures must be taken Two inlet ports are added with plastic plugs.
5. Install the nameplate, and fill in the content of the nameplate according to the technical requirement 3
Use:Hydraulic jack is the core hydraulic actuator element in the field of mining machinery, coal mine comprehensive mining equipment, etc., which can realize pushing, pulling, lifting, etc. through the telescopic movement of the cylinder body, and is widely used in mining hydraulic support, industrial lifting, building construction and other scenarios.
