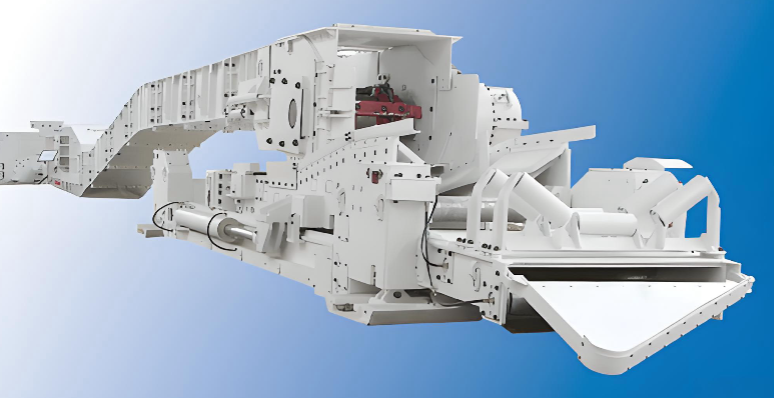

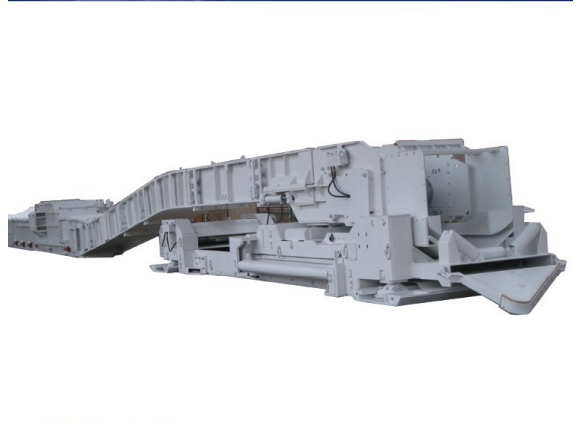

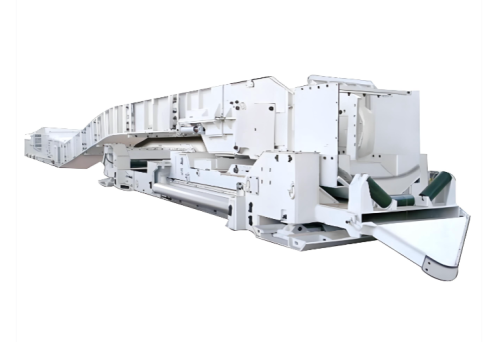

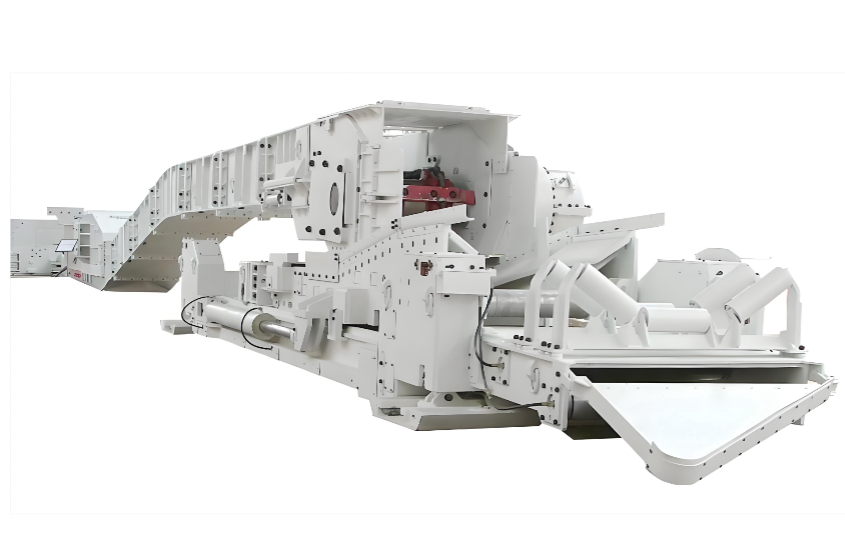

Product Name:Transfer Machine SZZ730/1132 used to transfer the coal mined
1.Model:SZZ730/132
2.Conveying Capacity(T/h):800
3.Scraper Chain Speed(m/s):1.1
4.Chain Size:30x108-C
5.Laying Length(m):150
6.Motor Power(KW):250
7.Scraper Spacing(mm):1080
8.Inter-Slot Connection Form:bolt, dumbbell connection
9.Speed Reducer:worm gear reducer: JS200
10.Scraper Chain Form:central double chain
11.Mid-Groove Form:cast-welded backing
12.Middle and Base Plate:NM360
13.Tightening Method:Tightening Method
14.Voltage(V):380/660/1100
15.Moving Mode:pull-shift device
Use:SZZ series transfer machine for the roadway is a key transportation equipment in the coal mine underground working face roadway. It is mainly used to transfer the coal mined by the coal mining machine from the working face scraper conveyor to the roadway belt conveyor, realizing the continuous transportation of coal, and is widely used in the comprehensive and ordinary working face.
